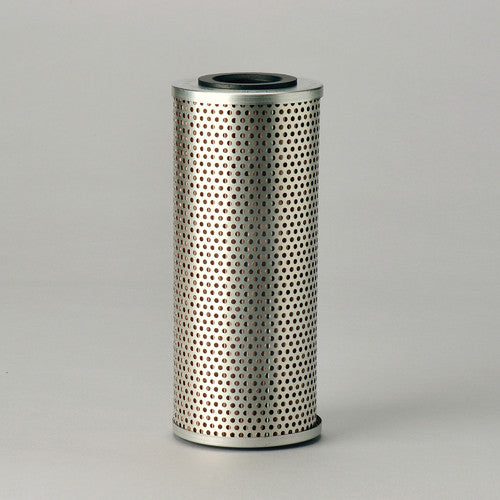

P779577 | Donaldson | OFS # 97-01-0181
Performance Data
Micron Rating: 3.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: FOR ABSOLUTE RATED MEDIA USE MICROGLASS.
Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)
Outer Diameter, Bottom: 3.88 IN (98.55 MM)
Inner Diameter, Top: 1.63 IN (41.40 MM)
Inner Diameter, Bottom: 1.63 IN (41.40 MM)
Length: 9.38 IN (238.25 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: B-GROM
Type of Adhesive: POLYVINYLCHLORIDE
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 17.00 LB (7.71 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
