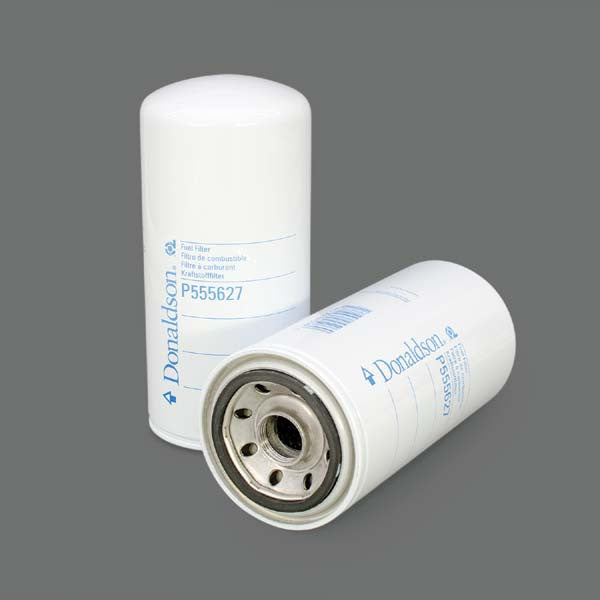

9360 | Crosland | OFS # 97-25-0517
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.72 IN (94.49 MM)
Outer Diameter, Bottom: 3.72 IN (94.49 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 8.06 IN (204.72 MM)
Thread: 1-14UNS-2B
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 18.10 LB (8.21 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
