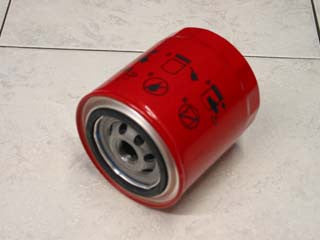

0-986-452-023 | Bosch | Spin-On - Cellulose Replacement

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
(A) Outer Diameter, Top: 3.31 IN (84.07 MM)

(B) Outer Diameter, Bottom: 3.31 IN (84.07 MM)

(C) Inner Diameter, Top:

(D) Inner Diameter, Bottom:

(E) Length: 4.02 IN (102.11 MM)

(F) Thread: 3/4-16 UNF-2B

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 9.80 LB (4.45 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
