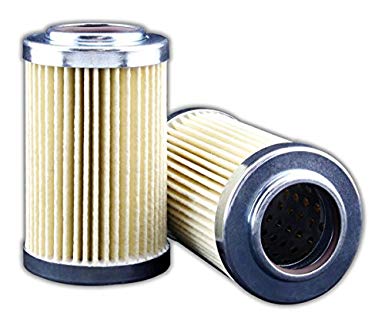

10005P5A000P | Donaldson | Pleated Paper Element | OFS # 97-34-0186

Lead Time: Please Call

Performance Data
Micron Rating:  5.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  425 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.36 IN   (59.94 MM)

Outer Diameter, Bottom:  2.36 IN   (59.94 MM)

Inner Diameter, Top:  1.35 IN   (34.29 MM)

Inner Diameter, Bottom:  1.35 IN   (34.29 MM)

Length:  3.94 IN   (100.08 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: 1.4 LBS

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
