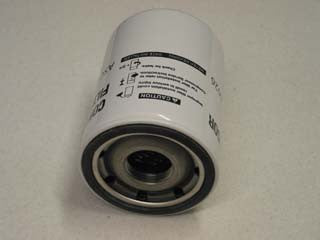

2250025844 - SULLAIR - OFS # 97-25-0844
Performance Data
Micron Rating: 10.00 ABSOLUTE
Beta Rating: B10=200
Collapse Pressure Rating: 58 PSI
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.04 IN (128.02 MM)
Outer Diameter, Bottom: 5.04 IN (128.02 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 7.17 IN (182.12 MM)
Thread: 1-1/4"-11 BSP
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: 744 SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN/SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
