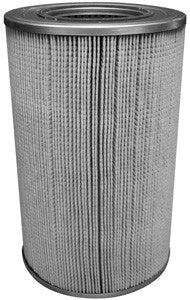

301 | DAHL | OFS # 97-28-0487

Availability Usually ships in 24-48 hours

Performance Data
Micron Rating: 2.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.06 IN (153.92 MM)

Outer Diameter, Bottom: 6.06 IN (153.92 MM)

Inner Diameter, Top: 3.25 IN (82.55 MM)

Inner Diameter, Bottom: 1.63 IN (41.40 MM)

Length: 9.50 IN (241.30 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 8.00 LB (3.63 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
