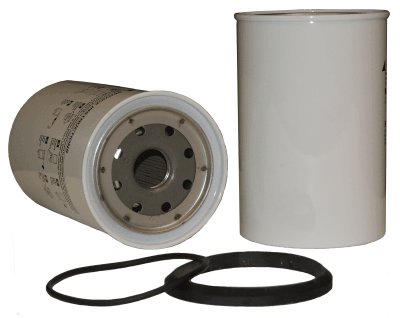

33775 | WIX W/Open Port | 97-25-1276
Fuel/Water Separator Spin-On
Lead Time: Please Call
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.66 IN (92.96 MM)
Outer Diameter, Bottom: 3.66 IN (92.96 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.63 IN (143.00 MM)
Thread: 1-14
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN/SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 16.70 LB (7.57 KG)
