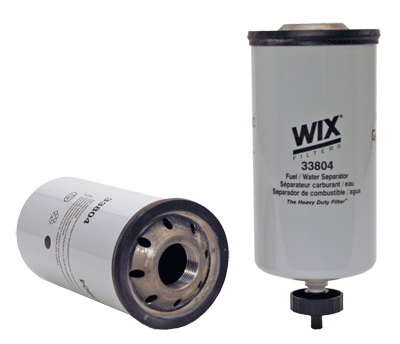

33804 | WIX | OFS # 97-25-1177
Fuel/Water Separator Spin-On
Lead Time: Please Call
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)
Outer Diameter, Bottom: 3.69 IN (93.73 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 6.16 IN (156.46 MM)
Thread: M24 X 2.0
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN/SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 15.70 LB (7.12 KG)
