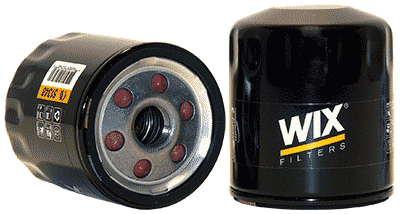

51348 | WIX | Spin-On Element | OFS # 97-25-0399
SPIN-ON ELEMENT Spin-On Element
Performance Data
Micron Rating: 0.00
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.00 IN (76.20 MM)
Outer Diameter, Bottom: 3.00 IN (76.20 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.09 IN (103.89 MM)
Thread: 3/4-16
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media:
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 10.20 LB (4.63 KG)
