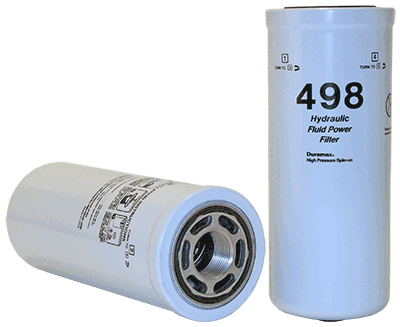

51498 | WIX | Spin-On Element | OFS # 97-25-0769
SPIN-ON ELEMENT Spin-On Element
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 12.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.95 IN (100.33 MM)
Outer Diameter, Bottom: 3.95 IN (100.33 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 9.45 IN (240.03 MM)
Thread: 1 3/8-12
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG)
