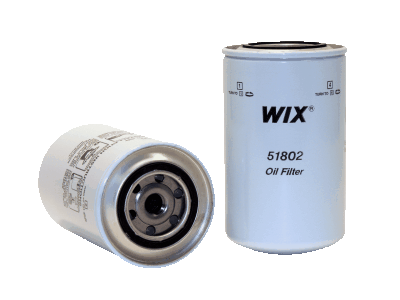

51802 | WIX | Spin-On Element | OFS # 97-25-0382

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.24 IN (107.70 MM)

Outer Diameter, Bottom: 4.24 IN (107.70 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.14 IN (181.36 MM)

Thread: 3/4-20

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN SPIN-ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 22.00 LB (9.98 KG)
