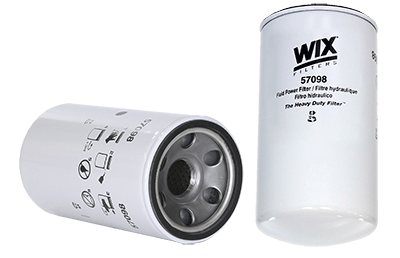

557098 | WIX | Spin-On Element | OFS # 97-25-1010
SPIN-ON ELEMENT Spin-On Element
Lead Time: 2-3 WEEKS
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.72 IN (94.49 MM)
Outer Diameter, Bottom: 3.72 IN (94.49 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 7.03 IN (178.56 MM)
Thread: 1 1/8-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.00 LB (0.45 KG)
