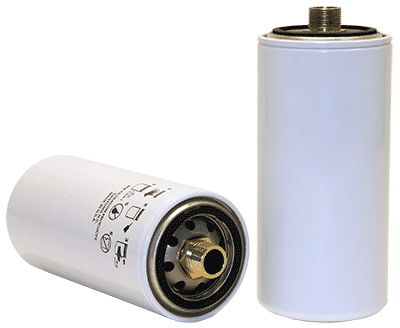

57723 | WIX | Spin-On Element | OFS # 97-25-0915
SPIN-ON ELEMENT Spin-On Element
Performance Data
Micron Rating: 6.00
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.72 IN (94.49 MM)
Outer Diameter, Bottom: 3.72 IN (94.49 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 8.88 IN (225.55 MM)
Thread: 1-12
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 27.80 LB (12.61 KG)
