70137 | Cim-Tek | OFS # 97-25-0253

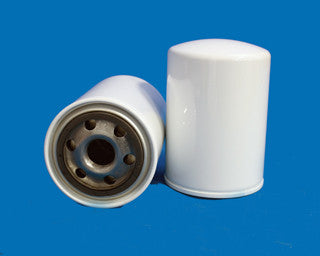

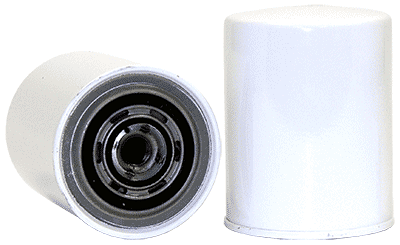

Spin-On Element Usually ships in 24-48 hours
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating:
Collapse Pressure Rating: 175 PSI
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)
Outer Diameter, Bottom: 3.70 IN (93.98 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.25 IN (133.35 MM)
Thread: 1"-12 UNF
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER/CHEM
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight 15.00 LB (6.80 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
