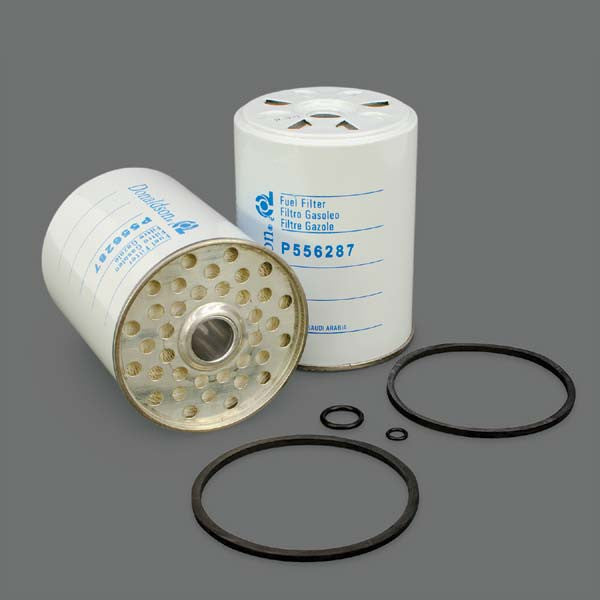

7711502907 | Renault | Fuel Filter Element | OFS # 97-28-0859
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.44 IN (87.38 MM)
Outer Diameter, Bottom: 3.44 IN (87.38 MM)
Inner Diameter, Top: 0.75 IN (19.05 MM)
Inner Diameter, Bottom: 0.75 IN (19.05 MM)
Length: 4.41 IN (112.01 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.70 LB (0.32 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
