851SA2271 | Baldwin-Lima-Ham | OFS # 97-22-0448
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 13.80 IN (350.52 MM)
Outer Diameter, Bottom: 11.08 IN (281.43 MM)
Inner Diameter, Top: 6.73 IN (170.94 MM)
Inner Diameter, Bottom: 0.54 IN (13.72 MM)
Length: 12.44 IN (315.98 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: N/A
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE/BOLT/FIN
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.70 LB (3.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

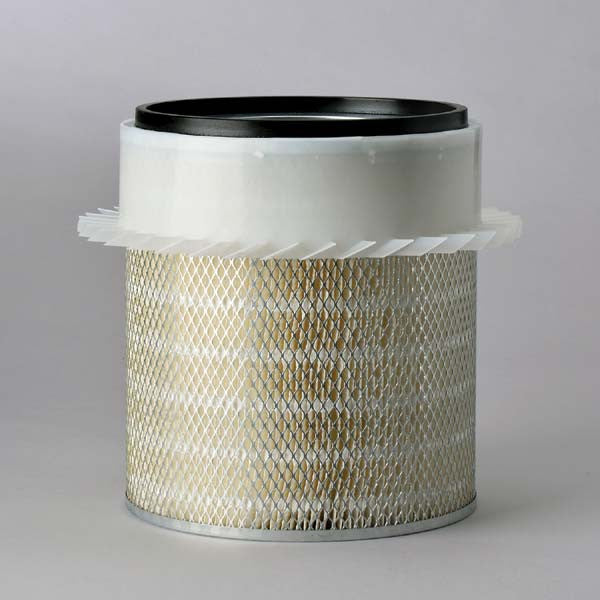

Intake Air Filter Element
