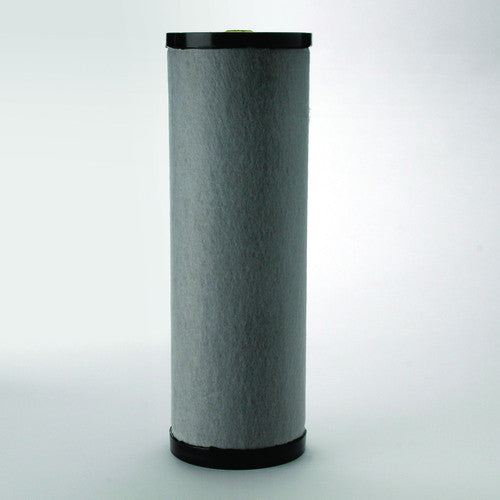

89288989 | Ingersoll Rand | Filter Element | OFS # 97-33-7916
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 0.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.78 IN (197.61 MM)
Outer Diameter, Bottom: 7.78 IN (197.61 MM)
Inner Diameter, Top: 7.12 IN (180.85 MM)
Inner Diameter, Bottom:
Length: 22.66 IN (575.56 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube:
Type of Media:
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB (1.36 KG)
