9730 | Crosland | OFS # 97-22-0894
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.75 IN (95.25 MM)
Outer Diameter, Bottom: 6.70 IN (170.18 MM)
Inner Diameter, Top: 2.63 IN (66.80 MM)
Inner Diameter, Bottom:
Length: 5.13 IN (130.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE WITH FLANGE
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.20 LB (1.00 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

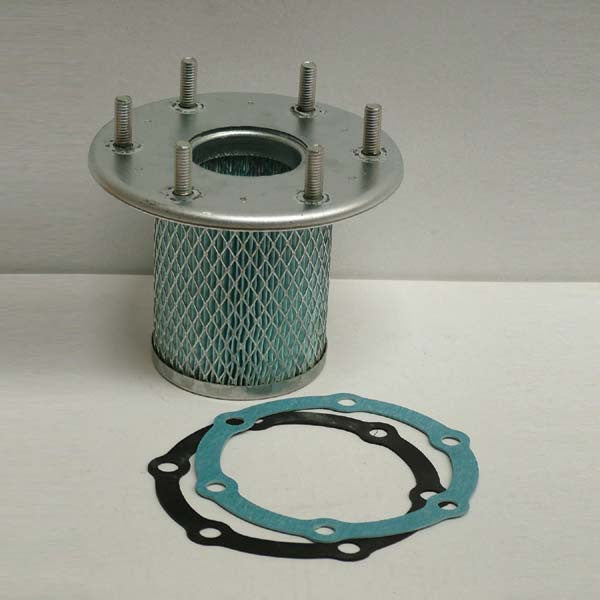

Intake Air Filter Element
