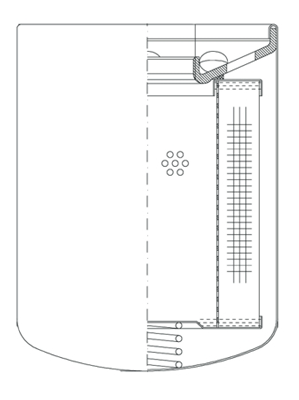

A09A03CW | WIX | Spin-On Element | OFS # 97-25-0811
SPIN-ON ELEMENT Spin-On Element
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 3.00
Beta Rating: N/A
Collapse Pressure Rating: 80 PSID
Maximum Temperature: 200 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 11.00 IN (279.40 MM)
Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: DUALGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 12.00 LB (5.44 KG)
