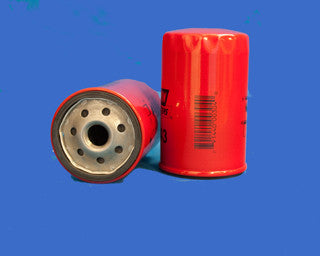

A90318735 | Ingersoll Rand | Spin-On Element | OFS # 97-25-0190

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 5.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 100 PSI WORKING PRESSURE

Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)

Outer Diameter, Bottom: 3.68 IN (93.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.59 IN (141.99 MM)

Thread: 3/4-14 BSP

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 3.3 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight 14.00 LB (6.35 KG)
