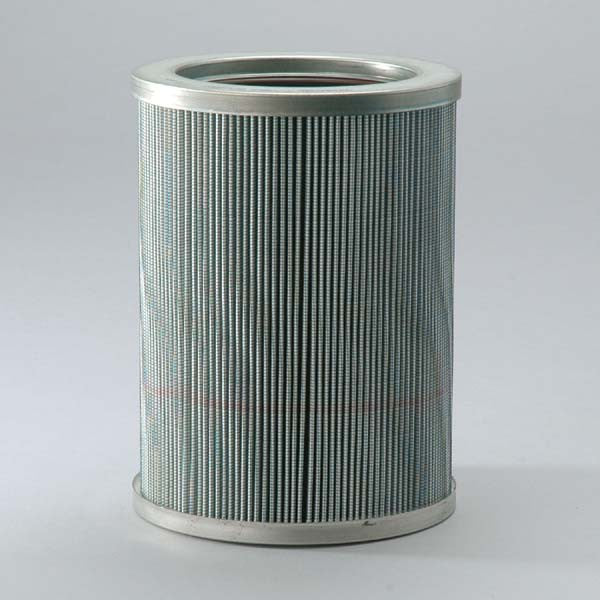

DP83250JFV | Textron | Pleated Microglass Element |OFS#97-F8300-39K25V
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 25.00 ABSOLUTE
Beta Rating: B25 = 200
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)
Outer Diameter, Bottom: 6.00 IN (152.40 MM)
Inner Diameter, Top: 4.17 IN (105.92 MM)
Inner Diameter, Bottom: 4.17 IN (105.92 MM)
Length: 38.70 IN (982.98 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: 5300 SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 14.00 LB (6.35 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
