ELF7300 | Donaldson | Spin-on Lube Filter Full Flow | OFS # 97-30-15

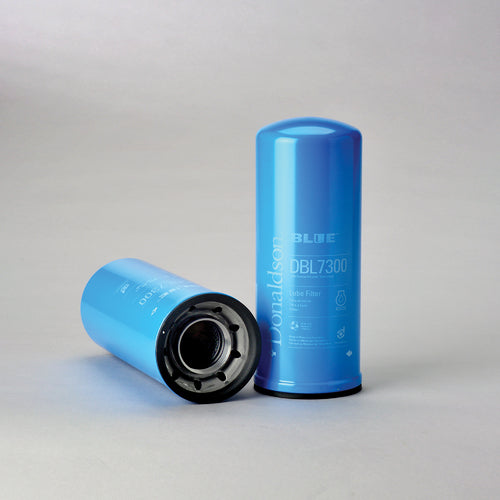

Replaced By DBL7300 LUBE FILTER, SPIN-ON FULL FLOW DONALDSON BLUE

Performance Data
Micron Rating: 15 MICRON

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.65 IN   (118.11 MM)

Outer Diameter, Bottom:  4.65 IN   (118.11 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  11.75 IN   (298.45 MM)

Thread:  2-1/4" - 12

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media: Synteq

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN ENDS

Packaging Specifications
Number per Carton:  6

Carton Weight:  4.00 LB   (1.81 KG)

Click Here To Compare Dimensions On Donaldson Official Website

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
