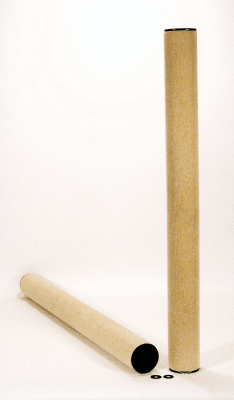

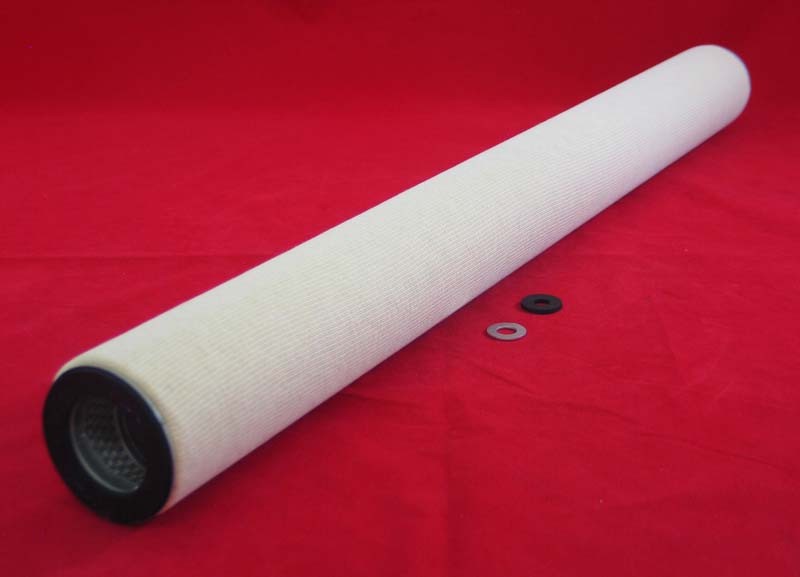

FG36 | PECO | OFS # 97-28-6321

PRICE SHOWN PER UNIT (MUST ORDER FULL CARTON OF 6 UNITS)

DESCRIPTION................. FIBERGLASS ELEMENT PERFORMANCE DATA: Micron Rating............... 1.00

Beta Rating.................

Collapse Pressure Rating....

Maximum Temperature......... 275 F

Direction of Flow...........

OUTSIDE/IN Maximum Flow Rate...........

DIMENSIONAL DATA: (A) Outer Diameter, Top..... 3.30 ( 83.8 mm)

(B) Outer Diameter, Bottom.. 3.30 ( 83.8 mm)

(C) Inner Diameter, Top..... 2.00 ( 50.8 mm)

(D) Inner Diameter, Bottom.. 2.00 ( 50.8 mm)

(E) Length.................. 36.00 ( 914.4 mm)

(F) Thread.................. NONE

PHYSICAL DATA: Handle...................... NONE

Seal Material............... BUNA-N

Type of Adhesive............ PVC

Type of Endcap.............. TIN PLATED STEEL

Centertube.................. TIN PLATED STEEL

Type of Media............... FIBERGLASS

Filter Area................. 3 SQ.FT. Plating.....................

Outer Jacket................ YES

Configuration............... DOUBLE OPEN END

Core Cover.................. NONE

By Pass Valve............... PSI Kit Part.................... NO

Panel Filter................ NO

PACKAGING DATA: Number per Carton........... 6

Weight per Carton........... 11 ( 5.0 kg)

Note1: Note2: Note3:RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE = 20 PSID Note4:PROUDLY MADE IN THE U.S.A. ****N/A=NOT APPLICABLE OR NOT AVAILABLE

Configuration:

 **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
