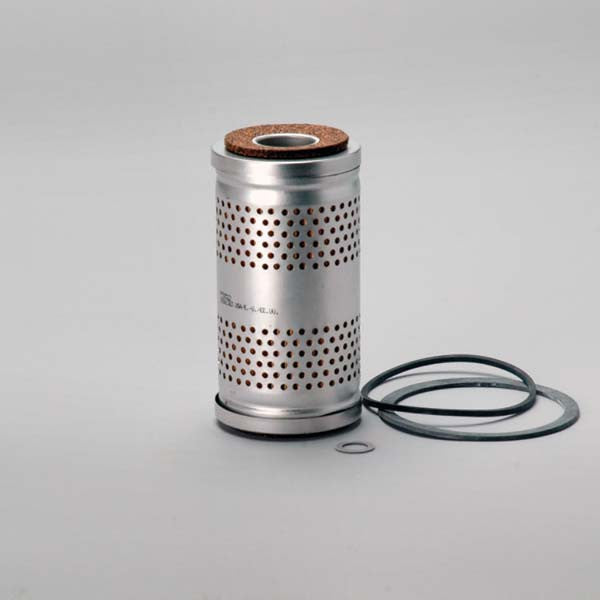

G732157 | Ingersoll Rand |OFS#97-10-0029

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications
Outer Diameter, Top: 3.01 IN (76.45 MM)

Outer Diameter, Bottom: 3.01 IN (76.45 MM)

Inner Diameter, Top: 1.04 IN (26.42 MM)

Inner Diameter, Bottom: 1.04 IN (26.42 MM)

Length: 5.71 IN (145.03 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: CORK

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
