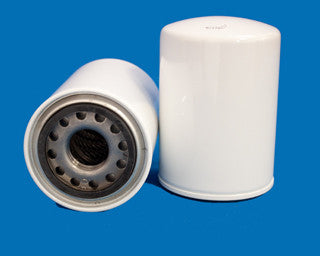

HF7622 - FLEETGUARD - OFS # 97-25-0580
Performance Data
Micron Rating: 3.00
Beta Rating: B=200
Collapse Pressure Rating: 250 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.73 IN (94.74 MM)
Outer Diameter, Bottom: 3.73 IN (94.74 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.35 IN (135.89 MM)
Thread: 1 1/8-16 UN2B
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN SPIN ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
