LAF15 | Luber-Finer | OFS # 97-22-0878
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: 1850 CFM FLOW RATE
Dimensional Specifications
Outer Diameter, Top: 15.00 IN (381.00 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 15.00 IN (381.00 MM)
Inner Diameter, Bottom:
Length: 5.00 IN (127.00 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NEOPREN
Type of Adhesive: THERMOSETTING PVC
Type of Endcap: NONE
Center Tube: NONE
Type of Media: PAPER
Filter Area: 62 SQ.FT.
Plating: N/A
Outer Jacket: YES
Configuration: PANEL STYLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.40 LB (3.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

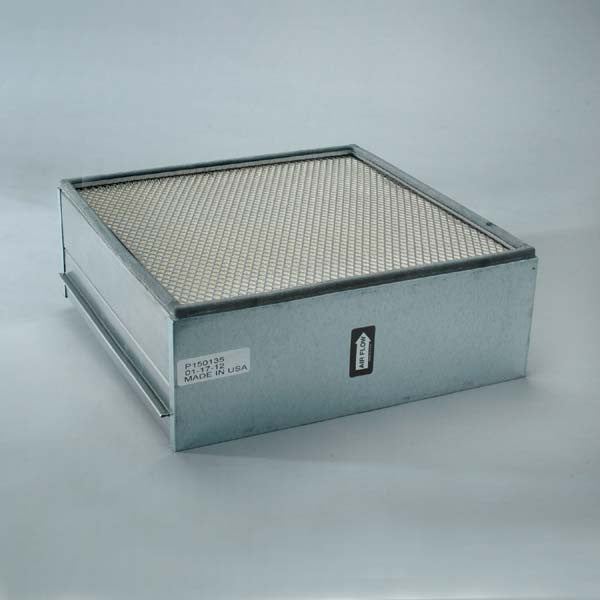

Intake Air Filter Element
