LAF1749 | Luber-Finer | OFS # 97-22-1076

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  10.16 IN   (258.06 MM)

Outer Diameter, Bottom:  10.12 IN   (257.05 MM)

Inner Diameter, Top:  0.41 IN   (10.41 MM)

Inner Diameter, Bottom:  6.34 IN   (161.04 MM)

Length:  21.41 IN   (543.81 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.70 LB   (3.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

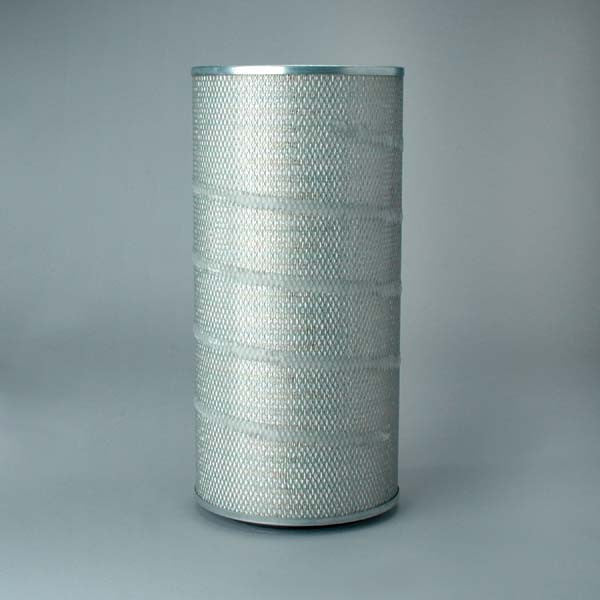

Intake Air Filter Element
