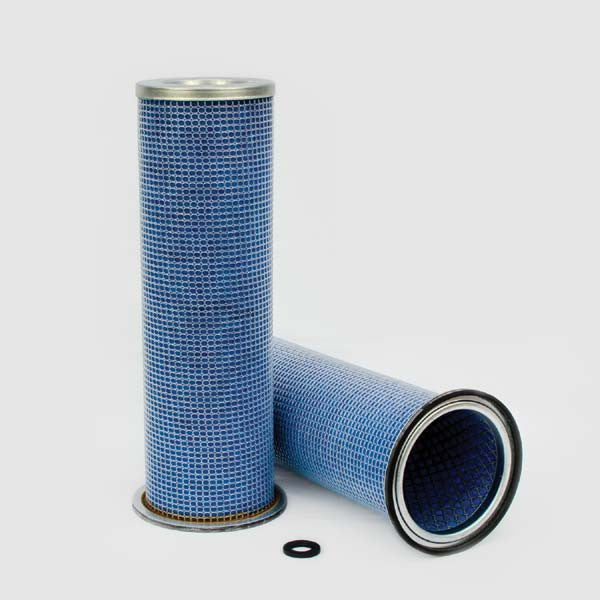

LAF1923 | Luber-Finer | OFS # 97-22-0946
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.84 IN (122.94 MM)
Outer Diameter, Bottom: 4.10 IN (104.14 MM)
Inner Diameter, Top: 3.65 IN (92.71 MM)
Inner Diameter, Bottom: 0.66 IN (16.76 MM)
Length: 13.05 IN (331.47 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube:
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE/FLANGE/BOLT
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.50 LB (0.68 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
