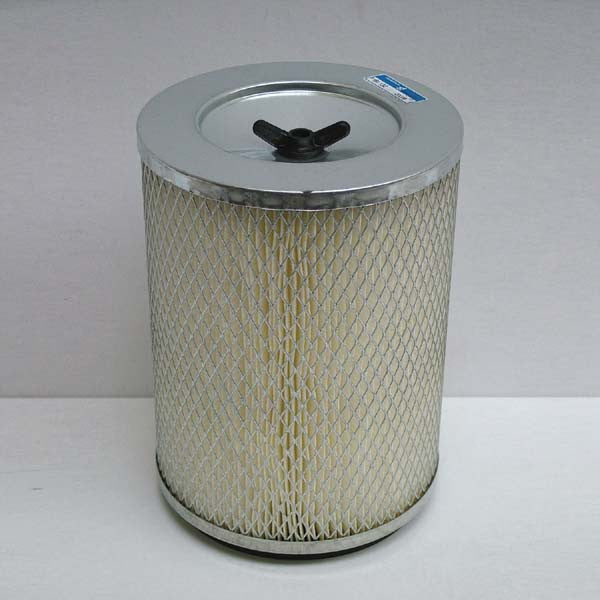

LAF1950 | Luber-Finer | OFS # 97-22-1044
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 0.69 IN (17.53 MM)
Outer Diameter, Bottom: 0.69 IN (17.53 MM)
Inner Diameter, Top: 4.23 IN (107.44 MM)
Inner Diameter, Bottom: 0.68 IN (17.27 MM)
Length: 9.50 IN (241.30 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE / BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.30 LB (1.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
