LAF210 | Luber-Finer | OFS # 97-22-0625
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.63 IN (168.40 MM)
Outer Diameter, Bottom: 6.63 IN (168.40 MM)
Inner Diameter, Top: 4.25 IN (107.95 MM)
Inner Diameter, Bottom: 0.25 IN (6.35 MM)
Length: 7.88 IN (200.15 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: POLYVINYLCHLORIDE
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: N/A
Outer Jacket: YES - METAL
Configuration: SINGLE W/BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.10 LB (0.95 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

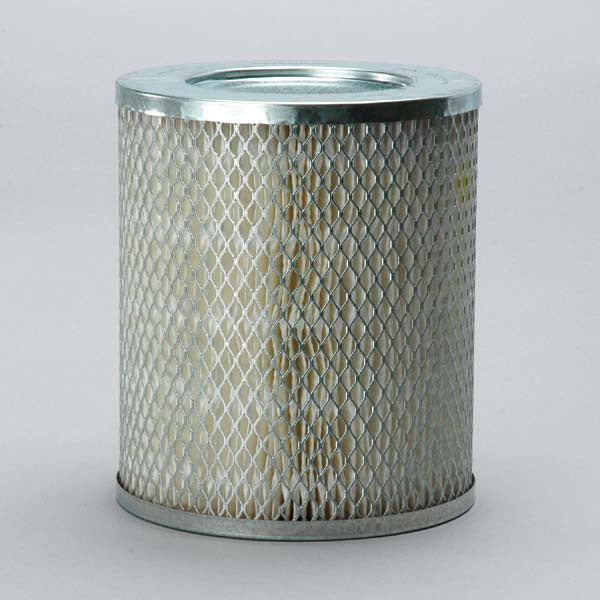

Intake Air Filter Element
