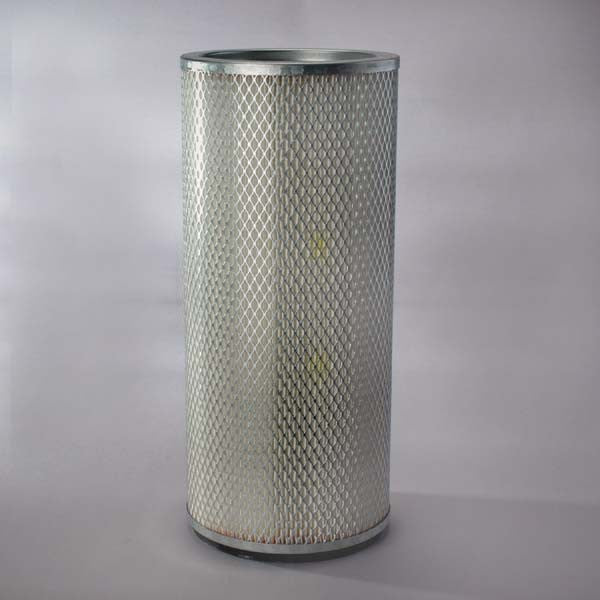

LAF2526 | Luber-Finer | OFS # 97-22-0855
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.65 IN (194.31 MM)
Outer Diameter, Bottom: 7.65 IN (194.31 MM)
Inner Diameter, Top: 0.67 IN (17.02 MM)
Inner Diameter, Bottom: 6.04 IN (153.42 MM)
Length: 15.75 IN (400.05 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
