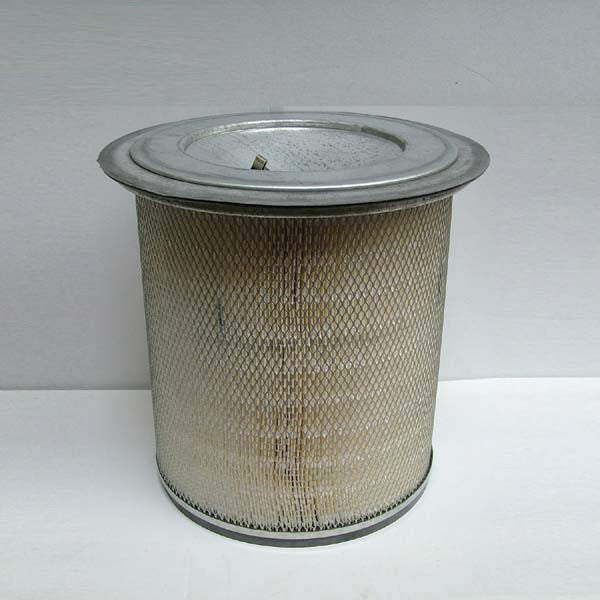

LAF282 | Luber-Finer | OFS # 97-28-1368
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 16.40 IN (416.56 MM)
Outer Diameter, Bottom: 13.83 IN (351.28 MM)
Inner Diameter, Top: 9.48 IN (240.79 MM)
Inner Diameter, Bottom: 0.93 IN (23.62 MM)
Length: 16.15 IN (410.21 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: 12.80 LB (5.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
