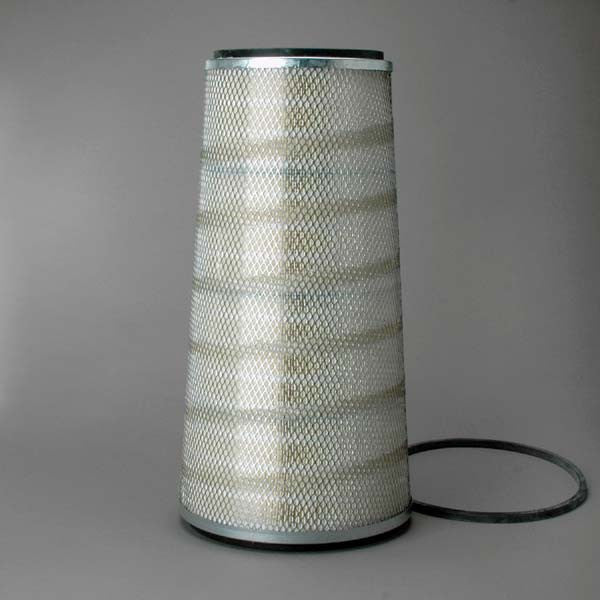

LAF3931 | Luber-Finer | OFS # 97-22-0943

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 12.77 IN (324.36 MM)

Outer Diameter, Bottom: 9.81 IN (249.17 MM)

Inner Diameter, Top: 8.33 IN (211.58 MM)

Inner Diameter, Bottom:

Length: 25.01 IN (635.25 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: POLYISO

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 13.00 LB (5.90 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
