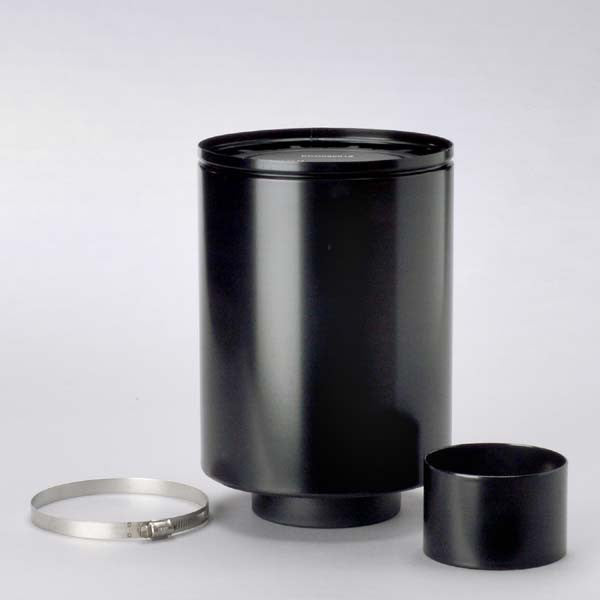

LAF8810 | Luber-Finer | OFS # 97-22-1350

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  7.72 IN   (196.09 MM)

Outer Diameter, Bottom:  7.72 IN   (196.09 MM)

Inner Diameter, Top:  3.98 IN   (101.09 MM)

Inner Diameter, Bottom:

Length:  12.40 IN   (314.96 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.80 LB   (2.63 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
