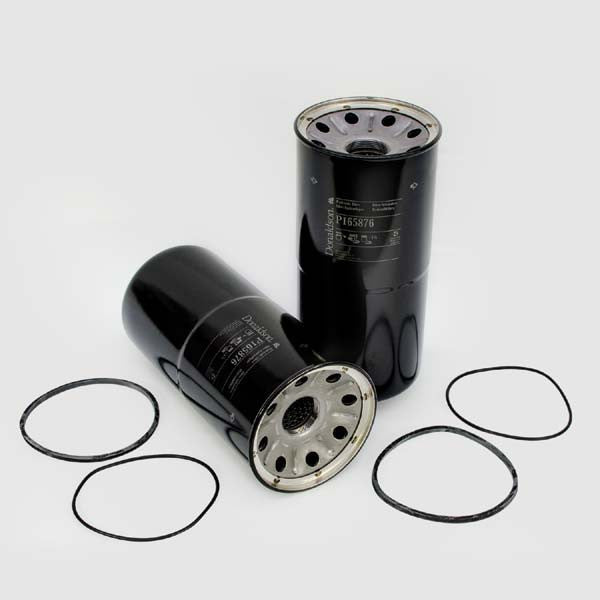

LFH5876 | Luber-Finer s | OFS # 97-25-0572
Performance Data
Micron Rating: 6.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 10.75 IN (273.05 MM)
Thread: 1.50-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.90 LB (3.58 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
