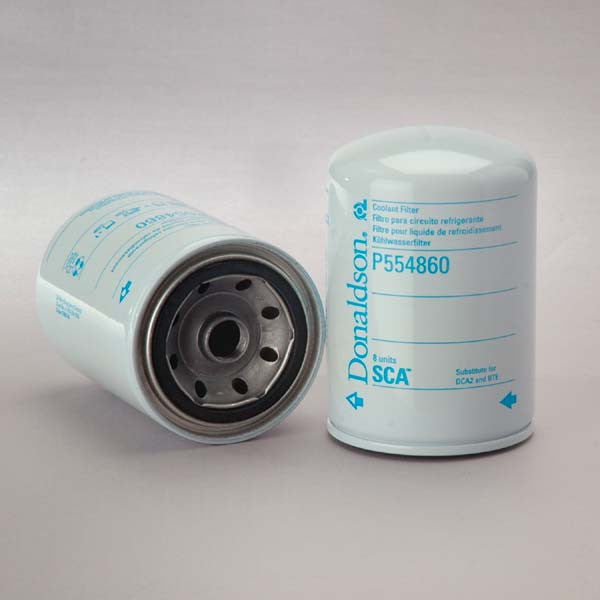

LFW4860 | Luber-Finer | OFS # 97-28-0949
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 30.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.67 IN (93.22 MM)
Outer Diameter, Bottom: 3.67 IN (93.22 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.41 IN (137.41 MM)
Thread: 3/4-20
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER/BTE
Filter Area: SQ.IN.
Plating: ELECTROTIN
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 17.00 LB (7.71 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
