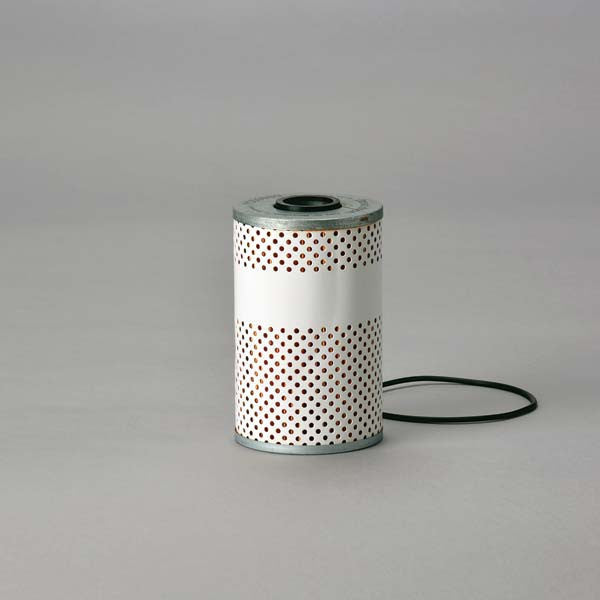

LH5739 | Luber-Finer | OFS # 97-01-3202

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.49 IN (88.65 MM)

Outer Diameter, Bottom: 3.48 IN (88.39 MM)

Inner Diameter, Top:

Inner Diameter, Bottom: 1.14 IN (28.96 MM)

Length: 5.61 IN (142.49 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
