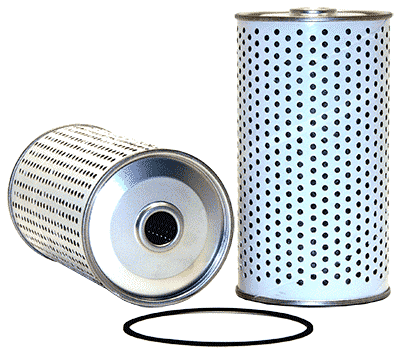

LM108 | Luber-Finer | Wound Cotton Element | OFS # 97-28-0609

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.25 IN (82.55 MM)

Outer Diameter, Bottom: 3.25 IN (82.55 MM)

Inner Diameter, Top: 1.56 IN (39.62 MM)

Inner Diameter, Bottom:

Length: 7.12 IN (180.85 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - SOCK

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weig 7.70 LB (3.49 KG)
