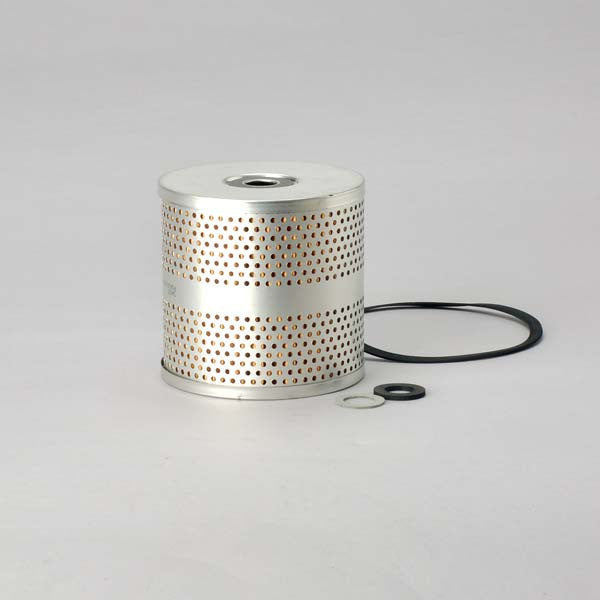

LP114 | Luber-Finer | OFS # 97-01-0852
Performance Data
Micron Rating: 18.00 ABSOLUTE
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.59 IN (116.59 MM)
Outer Diameter, Bottom: 4.59 IN (116.59 MM)
Inner Diameter, Top: 0.75 IN (19.05 MM)
Inner Diameter, Bottom:
Length: 5.87 IN (149.10 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 8.90 LB (4.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
