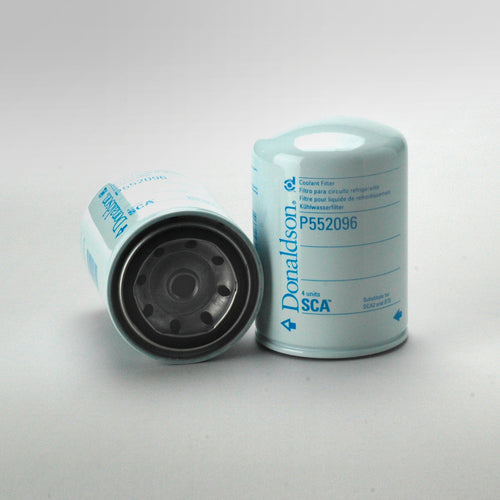

P552096 | Donaldson Coolant Spin-On Filter | OFS # 97-30-3649

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.66 IN   (92.96 MM)

Outer Diameter, Bottom:  3.66 IN   (92.96 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.35 IN   (135.89 MM)

Thread:  M16 x 1.5

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.50 LB   (0.23 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
