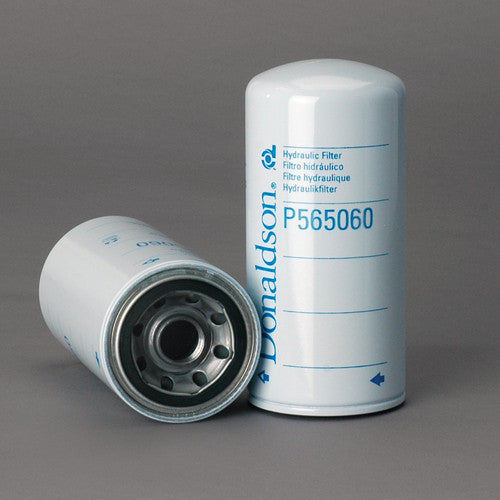

P565060 | DONALDSON | Donaldson Spin-on Filter Element
***Image may vary***

P565060 | Donaldson | Donaldson Spin-on Filter Element | OFS # 97-25-1225

Spin-On Filter Element

 Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:



Dimensional Specifications
Outer Diameter, Top:  3.60 IN   (91.44 MM)

Outer Diameter, Bottom:  3.66 IN   (92.96 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  7.87 IN   (199.90 MM)

Thread:  1-12 UNF



Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  STEEL

Center Tube:  STEEL

Type of Media:  CELLULOSE

Filter Area:

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
