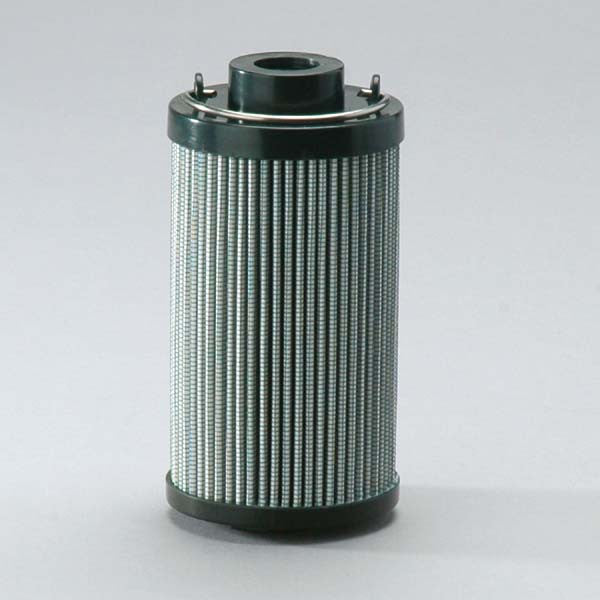

P566988 | Donaldson | Pleated Microglass Element | OFS # 97-05-0298

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:  B12=200

Collapse Pressure Rating:  435 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Additional Notes:  REPLACES HYCON PART NUMBER 0660R010BN/HC RETURN LINE

Dimensional Specifications
Outer Diameter, Top:  4.49 IN   (114.05 MM)

Outer Diameter, Bottom:  4.49 IN   (114.05 MM)

Inner Diameter, Top:  2.71 IN   (68.83 MM)

Inner Diameter, Bottom:

Length:  13.09 IN   (332.49 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:  VITON

Type of Adhesive:  EPOXY

Type of Endcap: PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  9773 SQ.CM.

Plating:  ZINC PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: 5.00 LB   (2.27 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
