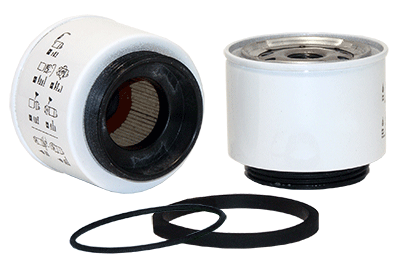

R12T| Racor W/Drain & Sensor | OFS # 97-28-6796
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: INSIDE->OUT
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.03 IN (76.96 MM)
Outer Diameter, Bottom: 3.03 IN (76.96 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.59 IN (116.59 MM)
Thread: M18 X 1.5
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN/SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.20 LB (0.54 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
