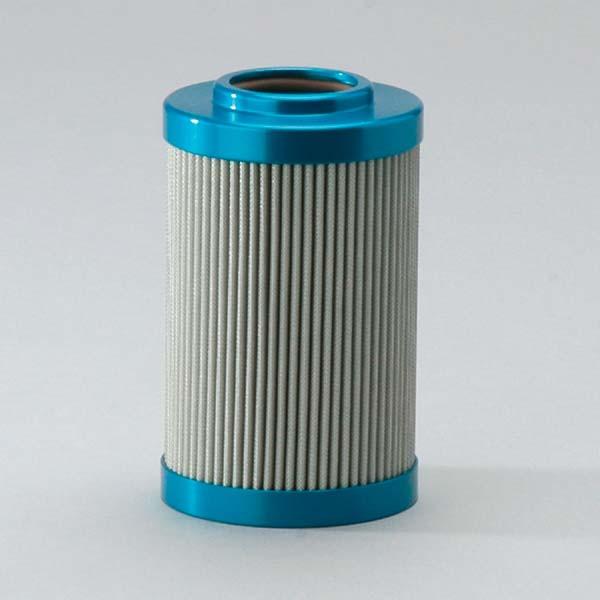

SE045H10V/2 | STAUFF CORP | OFS # 02-97-05-0051
AVAILABILITY - Usually ships in 24-48 hours
Performance Data
Micron Rating: 12.00 ABSOLUTE
Beta Rating: B12 = 200
Collapse Pressure Rating: 100 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 2.75 IN (69.85 MM)
Outer Diameter, Bottom: 2.75 IN (69.85 MM)
Inner Diameter, Top: 1.38 IN (35.05 MM)
Inner Diameter, Bottom:
Length: 4.50 IN (114.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.70 LB (0.77 KG)
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
