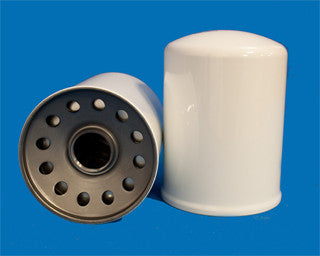

SE100 - ZINGA INDUSTRIES - OFS # 97-25-0278
Performance Data
Micron Rating: 5.00 NOMINAL
Beta Rating: B12 = 25
Collapse Pressure Rating: 300 PSI
Maximum Temperature: 250 F
Direction of Flow: INSIDE->OUT
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: FILTER SUPPLIED WITH 2 TYPES OF GASKETS.
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 7.00 IN (177.80 MM)
Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: 850 SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN /SPIN-ON
Packaging Specifications
Number per Carton: 6
Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
