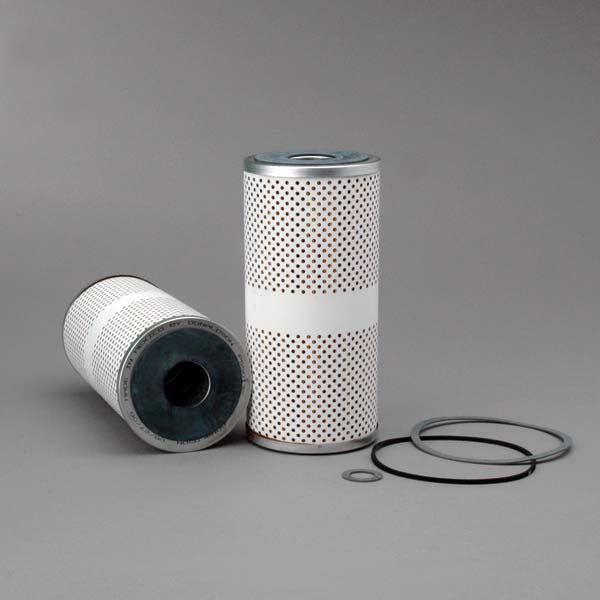

90828 | Baldwin-Lima-Ham | OFS # 97-28-0185
Performance Data
Micron Rating: 25.00
Beta Rating: N.A.
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.51 IN (114.55 MM)
Outer Diameter, Bottom: 4.51 IN (114.55 MM)
Inner Diameter, Top: 1.44 IN (36.58 MM)
Inner Diameter, Bottom: 1.44 IN (36.58 MM)
Length: 8.91 IN (226.31 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: POLYVINYLCHLORIDE
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 14.20 LB (6.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
