931-5 - HARMSCO
***Image may vary***

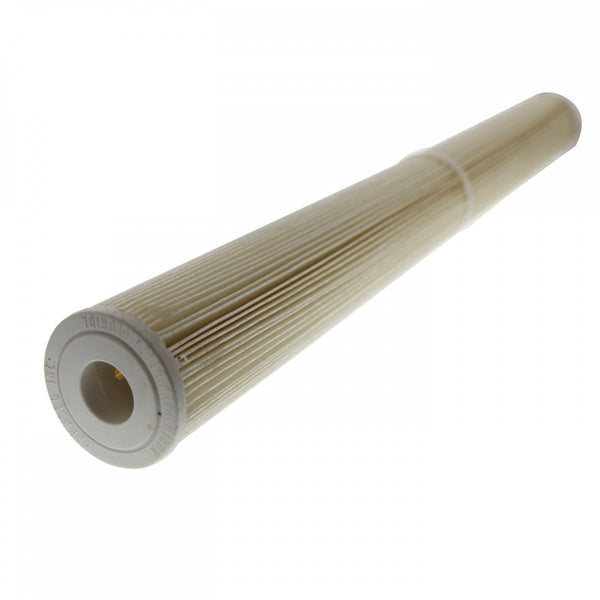

931-5 | HARMSCO | Pleated Synthetic Element | OFS # 97-04-0211

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  5.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  15 PSID



Dimensional Specifications
Outer Diameter, Top:  2.75 IN   (69.85 MM)

Outer Diameter, Bottom:  2.75 IN   (69.85 MM)

Inner Diameter, Top:  1.08 IN   (27.43 MM)

Inner Diameter, Bottom:  1.08 IN   (27.43 MM)

Length:  29.25 IN   (742.95 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  POLYPROPYLENE

Type of Media:  SYNTHETIC

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  24

Carton Weight:  22.00 LB   (9.98 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
