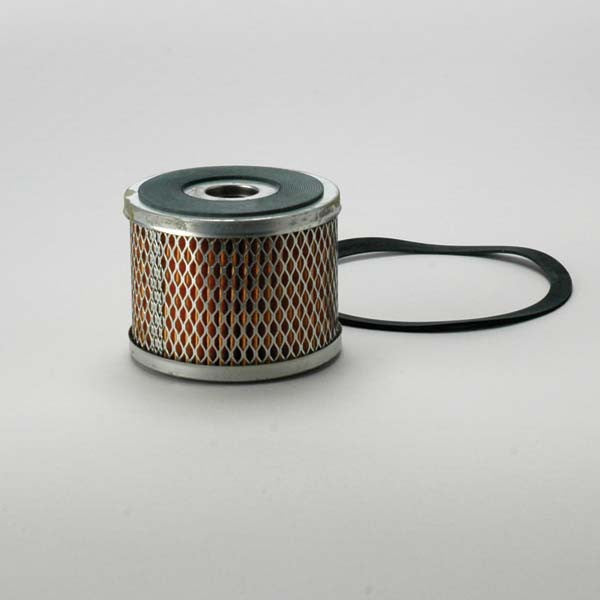

32516 | Garrison | Hydraulic Element | OFS # 97-28-1975

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.53 IN (89.66 MM)

Outer Diameter, Bottom: 3.53 IN (89.66 MM)

Inner Diameter, Top: 1.38 IN (35.05 MM)

Inner Diameter, Bottom: 0.86 IN (21.84 MM)

Length: 2.74 IN (69.60 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: FIBER

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: SINGLE 0PEN END/BH

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.30 LB (2.40 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
