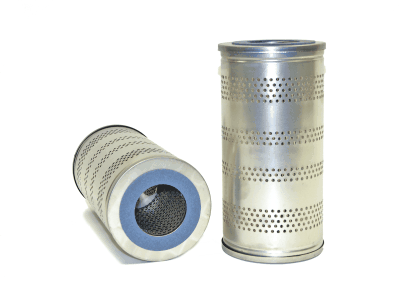

51181 | WIX | Hydraulic Element | OFS # 97-28-0139

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.52 IN (114.81 MM)

Outer Diameter, Bottom: 4.52 IN (114.81 MM)

Inner Diameter, Top: 2.26 IN (57.40 MM)

Inner Diameter, Bottom: 2.26 IN (57.40 MM)

Length: 9.12 IN (231.65 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.43 LB (0.65 KG)
