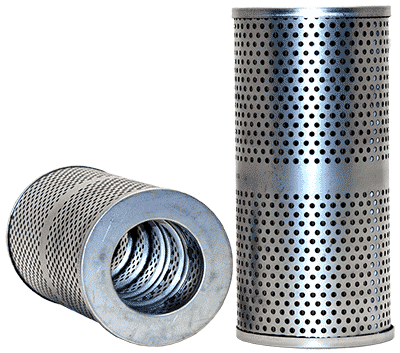

51236 | WIX | Hydraulic Element | OFS # 97-28-1958

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.94 IN (100.08 MM)

Outer Diameter, Bottom: 3.94 IN (100.08 MM)

Inner Diameter, Top: 2.33 IN (59.18 MM)

Inner Diameter, Bottom: 2.33 IN (59.18 MM)

Length: 8.26 IN (209.80 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 16.10 LB (7.30 KG)
